Lifting drying rack is a more common drying rack, because it is relatively simple and convenient to use, is more popular in the market by consumers. Lifting drying rack to buy back is the need for us to install, the installation of a lot of accessories, then you know lifting drying rack accessories are what, lifting drying rack accessories price is how much, how we want to install it, the following we will come together to understand it.

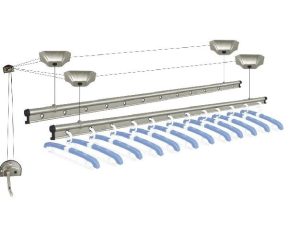

Lifting drying rack accessories are what
A. Hand crank
Hand crank is the heart of the drying rack, is the most critical accessories.
Two, wire rope
Now most of the clothesline wire rope is used 202 # stainless steel wire as raw material, there are a few very high-grade with 304 # stainless steel wire to do.
Third, the steering device
Is installed on the wall, so that the wire rope through the internal pulley and keep the vertical device with the hand crank.
Four, the top seat
It is installed on the ceiling of the balcony, so that the wire rope through the internal pulley and vertical connection with the drying rod and support all the weight of the device.
Five, drying rod
Usually it is equipped with two drying rods, initially it is made of stainless steel tube, now it is mostly made of aluminum tube with different shapes, because the surface of aluminum can be made with various surface treatments, which makes it look beautiful and has a decorative effect.
Wholesale price of lifting drying rack accessories
Shift hand crank
Hand crank is the fastest wear and tear in the lift drying rack accessories, we should properly maintain the hand crank in daily use, not too rough in use, and do not let children play with the hand crank as a toy. The first thing I would like to introduce to you is the wholesale price of shift hand cranks. Now most of the lift drying rack on the market are shift hand cranks, this one is made of aluminum alloy and plastic, with silver and khaki two colors to choose from. The first sample quantity of 10, the unit price of 32 yuan; purchase between 1 and 59, the unit price of 39 yuan; purchase more than 60, the unit price of 31 yuan. Express delivery fee needs to be calculated separately.
Double lever hand crank
This double-rod hand cranks the shape of a butterfly, gold, silver, sand gold, sand silver, imitation steel, champagne and other six colors, using imported oxidation spray paint, glossy texture are very good. Its advantages are built-in for the tube closed bearing, the main structure is built of titanium aluminum, good corrosion resistance, will not rust; its low security made a special thickening, the noise in operation is very small, will not affect the life. Size specification is 14.2cm * 8cm * 3.7cm, weight is 0.45kg, installation hole distance is 12.9cm. the first take sample quantity is 10, the price is 29 yuan. Buy 10 to 29 unit price is 18 yuan, 30 to 999 unit price is 17.5, more than 1000 for 17 yuan.
Lifting drying rack should be how to install
A, the installation of the shaking hand device: shaking hand device ordinary installation in the right side of the balcony, in order to when habitual use, the interval air ordinary 120cm, according to the height of the user resolution. Fixed with shrinkage screws.
Second, the installation of the top seat: on the top of the balcony to be installed, use a steel ruler to measure the diameter of the balcony top lighting, and then make a device mark between 15cm-30cm on both sides of the light (length according to the size of the balcony resolution). Then measure the mark and the interval between the edge of the balcony, based on this interval to determine the width of the top seat installation. Then measure the length of the balcony as the center of the light, based on the length of the drying rod to determine the light on both sides of the equal 80cm-100cm, and then with the width of the measurement interval there are four interpolation points, these four interpolation points is the installation position of the top seat of the coat rack. After the position is sure, drill holes with electric drill, after drilling holes with shrinkage screws first fixed four top seat (such as bar length beyond the conventional size, this interval to do the corresponding adjustment).
Note: The two top seats on the corner of the rocker are the active end. The other two top seat is fixed seat, the difference between them is that the activity seat is two wheels, the activity seat must be installed in front.
Third, the installation corner: corner can be installed on the top of the balcony or the top of the wall, corner interval activity top seat 50 – 70cm, must be in the middle of the activity top seat into a triangle (45 degrees angle), and the location of the rocker device to adhere to the same vertical line, can refer to the drawings.
Fourth, the wire connection: a set of drying racks inside two wire, first take out a, first of all, one end of the wire through the corner of the bearing wire groove, then through the active end of the top seat of the active wheel bearing wire groove (located in the upper part of the top seat), and then through the fixed end of the top seat of the bearing wire groove let the wire perpendicular to the air, and then the top cover from the wire set into, card good top seat cover. The other end of the wire also through the corner of the bearing wire groove another hole, then through the movable seat of another movable wheel bearing wire groove (the same top seat below), so that the wire is perpendicular to the air, and then the top cover from the wire set into, card the top seat cover.
Another steel wire installation method is the same.
Fifth, dry articulation: in the head end of each steel wire, wear a hanging ball, knot in the hanging ball; then pull the hanging ball until the top of the top seat, then pull the steel wire from the corner, just into a double-stranded steel wire, stuck in one end of the hand crank; relax the steel wire in the hand crank, the hanging ball landing, the drying rod through the hanging ball, then followed by the hole in the hanging ball screwed fixed, nailed screws; finally, the two ends of the drying rod device on the plug.
