The water pipe of the toilet is a very important part of the toilet. It can be said that the water pipe is the soul element of the toilet. Without the water pipe, the toilet can not normally play its function. How to install the toilet pipe?
Toilet water pipe installation method
1, the distance between hot and cold water pipes in the toilet should meet the decoration standards. The height of shower pipe should be between 1.8M and 2.1M.
2. In the installation of the toilet water pipe, the general cold and hot water outlet should be kept horizontal, the general left hot and the right cool, the pipeline laying should be horizontal and firm, and the layout should be safe and reasonable. Pipe clamp position and pipe slope shall meet the specification requirements. All kinds of valves should be installed in the correct position and level, easy to use and maintenance.
3. Cold and hot water pipes are into the wall. When grooving, check the depth of the groove.
4. When installing the water inlet and outlet of the water heater, the water inlet valve and the air inlet valve must be considered and installed in the corresponding position.
Preparations before installation:
1. The water inlet should be equipped with an indoor main valve. Before installation, check whether the water pipe and connecting accessories have damage, sand holes, cracks and other phenomena.
2. When installing kitchen and sanitation pipes, the size of the pipe out of the wall should take into account the final size of the wall tile after it is pasted, that is, the thickness of the wall tile should be considered in advance.
3. In the wall and under the ground, use less or no connecting accessories as far as possible to reduce leakage hidden points. The installation of connecting accessories should ensure firm, no leakage.
4, the design of the water pipe should consider the installation position of the water faucet of the washing machine, the layout of the water. At the same time, pay attention to the location of the power socket is appropriate. It is necessary to determine the size of washing machine and kitchen cabinet, so as to leave the water position.
Toilet water pipe installation precautions
First, the correct sequence of toilet water pipe installation

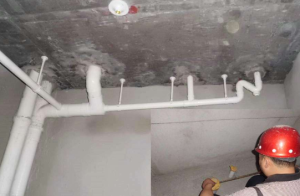

Before the installation of the water pipe in the toilet, we must follow certain reasonable steps. Generally, we must first discuss the specific direction of the waterway with the installation master. The second step is to fix the clip to the wall with an electric hammer.
Two, toilet water pipe design layout
Toilet water pipe installation should be laid according to the direction of the water, generally horizontal and vertical, as far as possible 2 pipes do not cross, if the cross to take the bridge, hot and cold water pipe separate and maintain a certain distance, bath mixed water valve around the correct position and installed in the middle of the bathtub, the height is best between 1.8 meters to 2.1 meters, But also for the installation of the water heater and washing machine inlet and outlet reserved position, to achieve a scientific and reasonable layout.
Three, toilet water pipe pressure measurement process
Before the pressure test, the valve behind the water meter should be closed, and the end of the pressure test pipe should be blocked and injected water slowly. After filling with water, the seal should be checked, and then the pressure should be boosted manually. After the pressure is stabilized, the pressure drop within half an hour is not more than 0.05Mpa.
To sum up, people should have a new understanding of the toilet water pipe installation knowledge, do not look down on the installation of a water pipe, is the correct installation of a water pipe, the toilet in the home can be used normally for a long time, so the toilet water pipe installation is also very important.
