The clothes rack is a furniture product we can not lack in life, there are many kinds of clothes rack, such as lifting clothes rack, wall hanging clothes rack and so on are more common clothes rack products, so in general, what are the accessories of clothes rack products, we want to install it, let’s understand the relevant situation of clothes rack.
Common types of clothes hangers:
1. Lifting clothes rack:
Balcony lifting type drying rack is installed on the balcony, by hand or electric way to make the drying rod lower, put the clothes good, and then make the drying rod higher. This product is suitable for home and dormitory balconies.

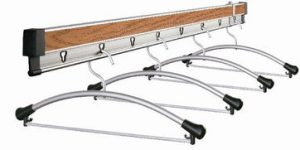

2. Wall hanging clothes hanger:
Wall hanging clothes rack is installed on the wall, the installation height is generally to the human chest, reasonable design should be able to play up and down, usually put down the wall, do not occupy space, to play up when washing. These drying racks are short and suitable for hotels, dormitories, hospital wards, family rooms, etc. Long suitable for outdoor, such as villas or houses with yards.
3, floor drying clothes rack:
Floor drying clothes rack is directly placed on the ground with a drying clothes rack, now common X type, butterfly type (also known as the wing), horizontal bar and parallel bar type several. Suitable for rooms, balconies and outdoors.
What are the basic clothes rack accessories
First, hand manipulator
The hand manipulator is the heart of the clothes rack and is the most critical accessory.
Two, wire rope
At present, most of the wire rope of the clothes rack is made of 202# stainless steel wire, and there are a few very high-grade ones made of 304# stainless steel wire.
Three, steering gear
A device mounted on a wall that allows the wire rope to pass through an internal pulley and remain perpendicular to the hand.
Four, the top seat
Is mounted on the ceiling of the balcony, let the wire rope through the internal pulley and vertically connected to the drying rod and support all the weight of the device.
Five, drying rod
Usually with two drying rods, at the beginning is to use stainless steel tube, now is to use different shapes of aluminum tube, because aluminum surface can do a variety of surface treatment, make it appear beautiful and have decorative effect.
Replace and install clothes rack accessories
1. Installation of hand rocker
The hand rocker is usually installed on the right side of the balcony, so that it can be used in a customary manner. The interval air is generally 120cm, and the resolution is made according to the height of the user. Secure with shrink screws.
2. Installation of the top seat
The lifting clothes rack is on the top of the balcony to be installed. Measure the interval between the mark and the edge of the balcony with a steel ruler, and determine the width of the top seat device according to this interval. Then measure the length of the balcony with the lamp as the center. According to the length of the clothes drying rod, the two sides of the lamp must be equally divided by 80cm — 100cm. Then, there are four interpenetration points between the measurement interval and the width, which are the installation position of the top seat of the hanger. After the position is sure to be good, drill holes with electric drill. After drilling holes, fix the four top seats with shrinkage screws (if the bar length exceeds the conventional size, this interval should be adjusted accordingly).
3. Installation Angle
The Angle can be installed on the top of the balcony or the top of the wall, the Angle interval activity top seat 50-70cm, must be in the middle of the activity top seat into a triangle (45 degree Angle), and the position of the hand device to adhere to the same vertical line, can see drawings.
4. Steel wire connection
There are two steel wires inside the clothes rack, first take out one, first put one end of the steel wire through the corner of the bearing steel wire groove, then through the movable end of the top seat of the movable wheel bearing steel wire groove (located in the upper part of the top seat), and then through the fixed end of the top seat of the bearing steel wire groove so that the steel wire is perpendicular to the air, and then the top cover from the wire into the card cover. The other end of the wire also passes through the corner of the bearing wire groove another hole, and then through the movable seat of another movable wheel bearing wire groove (below a top seat), so that the wire is perpendicular to the air, and then the top cover from the wire into the card, the top cover, another wire device method is the same.
5. Dry and connect
At the head end of each wire, thread the drop ball and tie a knot in the drop ball; Then pull the drop ball until it supports the top seat, then pull the wire from the corner, just into a double wire, stuck in one end of the hand; Relax the wire in the hand rocker, drop the drop ball, put the drying rod through the drop ball, and then tighten and fix the hole in the drop ball, screw the screw; Finally, plug the head on both ends of the drying rod.
