浴霸开关坏了怎么办 浴霸开关多少钱?

浴霸开关坏了怎么办 浴霸开关多少钱?

2023-01-04 10:01:34

The Yuba switch is the switch to control the Yuba. The Yuba is originally from English “BATHROOMMASTER”, which can be literally translated as “Bathroom Master”. It is a small household appliance product for bath that combines various functions such as bathroom heating, infrared physiotherapy, bathroom ventilation and decoration through the ingenious combination of a special waterproof infrared heat wave tube and a ventilation fan.

What should I do if the Yuba switch is broken?

It is caused by a short circuit of the power line. If there is no problem with the check switch, check the power line upwards to see if it is normal. It is best to find a professional electrician to check.

Yuba switch wiring

Yuba switch wiring diagram, as follows, the live line, bottom line, and neutral line are clearly marked.

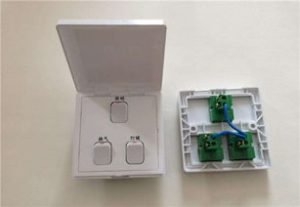

Yuba switch installation

Installation points

1. The general Yuba switch has six buttons, which are main power supply, light bulb, steering, cold air/ventilation, heating 1, heating 2, etc. To make the total power control all buttons, other buttons can work independently, the wiring behind it is very complicated. There are a total of 16 terminals and 18 wire ends in the six buttons. If you let yourself arrange and combine them all, you will be confused.

2. The manufacturer of the Yuba switch has simplified it to connect 11 wires in place. What the customer needs to do is to connect the 7 wires from the Yuba to the 7 terminals of the switch. The 7 wires are connected to 7 different terminals, which is also very easy to mess up. I first observe the positions of the thread ends on the original switch, note down the colors of the different thread ends and their corresponding terminal posts, then remove the old switch, replace it with a new switch, and connect the corresponding thread ends to the terminal posts one by one. The switch is fixed to the wall.

3. Because the lighting and heating of the Yuba cannot be turned on at the same time to achieve explosion-proof, the so-called interlock function of the manufacturer is actually realized by a single-pole double-throw switch and a double-pole double-throw switch. After the transformation according to the above plan , it can realize that the lighting and heating will not be turned on at the same time, and the lighting, ventilation, and heating can all be used normally, but there are some differences from the original switch: that is, after the lighting is turned on, the heating cannot be turned on, reaching the explosion-proof Function, only when the lighting is turned off manually can the heating be turned on, while the original one is that when the lighting is turned on, the lighting is automatically turned off when the heating is turned on.

How much is Yuba switch?

1. Odoran Universal Yuba Switch 4-Open Integrated Ceiling Bathroom Special Switch 4-in-1 4-Open Panel Price: 20 yuan

2. GELAN switch socket Yuba switch five open 86 type waterproof wind heating gold tube carbon fiber universal price: 30 yuan

3. OP Yuba four-way switch original authentic 4 open lighting warm interlocking four lights warm universal switch Price: 40 yuan
